Axle Teknology import 17-110 pre greased idler hub kit fits 2990lb to 3500lb capacity axles and has a 5 on 4-1/2" bolt pattern. No need to assemble, this idler hub already has the bearings greased with Exxon Mobile RONEX™ MP lithium complex water resistant wheel bearing grease. The grease seal is already installed. No need to pack the bearings. Compatible all with 1-1/16" inner diameter outer bearing and a 1-3/8" inner diameter inner bearing combinations and comes with both lubeable style dust cap and standard solid dust cap that are both interchangeable with all E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands.
Complete pre-greased fully assembled boxed trailer idler hub kit for 1 wheel.

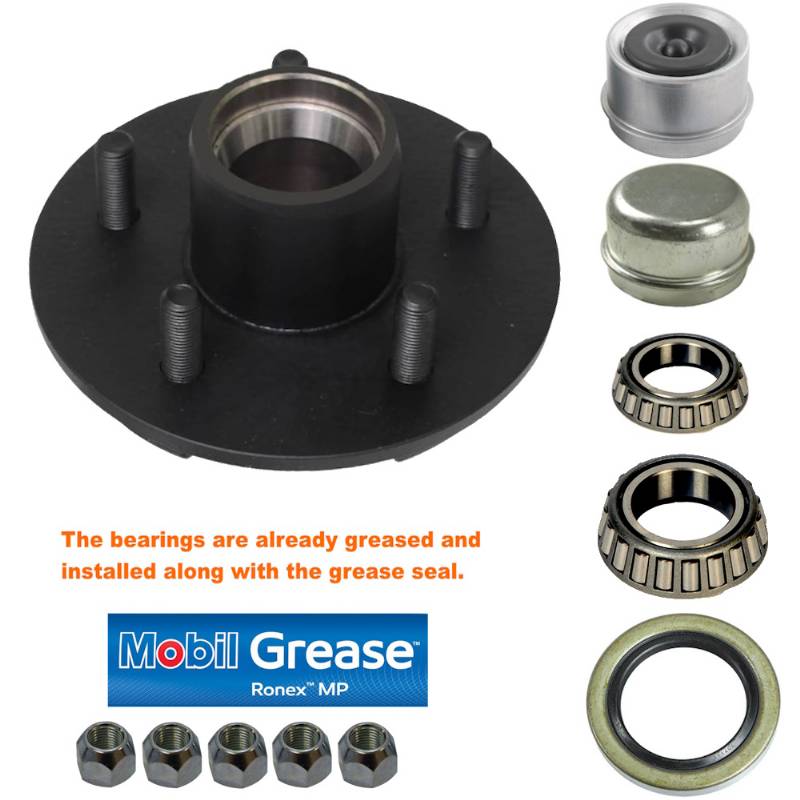

Pre-greased fully assembled kit Includes:

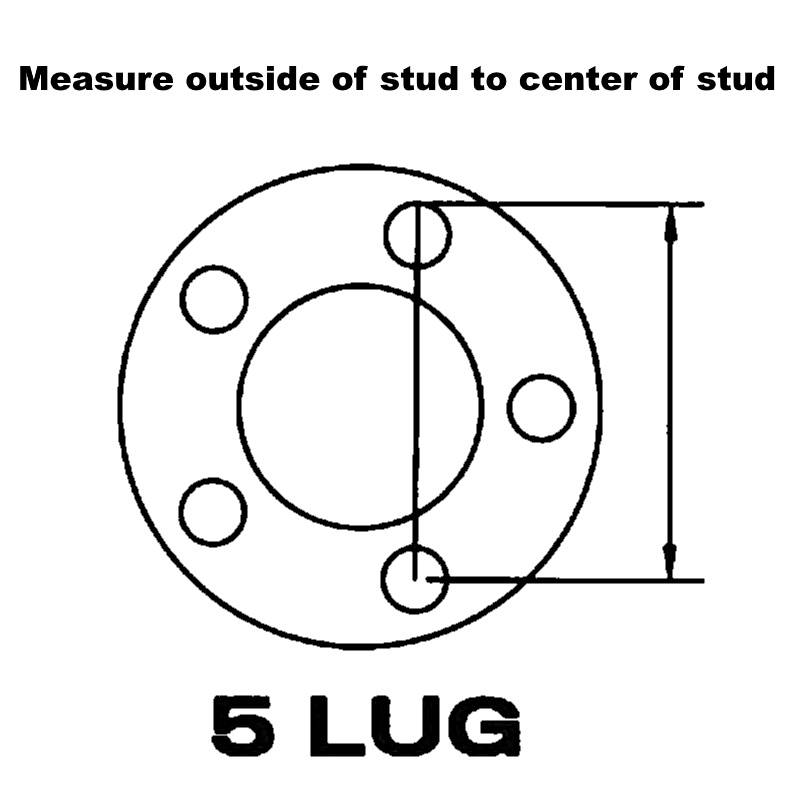

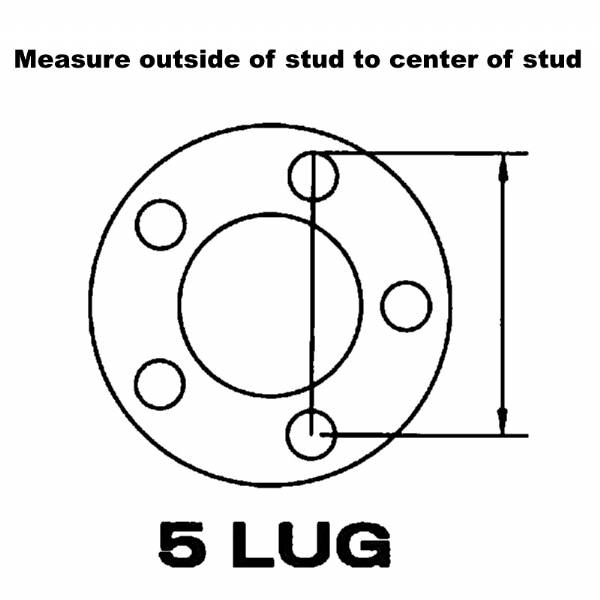

- 1 - Idler hub with 5 on 4-1/2" lug bolt pattern (see image on how to measure lug spacing)
- 6-1/4" diameter large flange
- 4-1/8" overall height
- 1/2"-20 thread pitch lug studs
- Rated 1750 lbs. capacity per side
- 1 - L44649 bearing cone (pre-greased and pre-installed)
- 1-1/16" (1.063") inner diameter
- 1 - L68149 bearing
- 1-3/8" (1.378") inner diameter
- 1 - L44610 outer bearing cup race (pre-installed)
- 1 - L68111 inner bearing race (pre-installed)
- 1 - 171255TB Grease seal (See Note)
- 1.719" inner diameter
- 2.565" outer diameter
- 1 - 1.98" outer diameter lube style cap and rubber plug
- 1 - 1.98" outer diameter standard dust cap
- 5 - 1/2"-20 thread pitch zinc plated 60 degree coned lug nuts
This kit is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
Note: Some trailer applications use a 1.687" inner diameter grease seal. This kit will not work on those applications without purchasing an replacement grease seal#168255TB
