We'll call or text you back with pricing
8' 4" x 20' 0"
- GVWR
- 9990 lb
8' 4" x 24' 0"
- GVWR
- 9990 lb
8' 4" x 28' 0"
- GVWR
- 12000 lb
8' 4" x 32' 0"
- GVWR
- 18000 lb

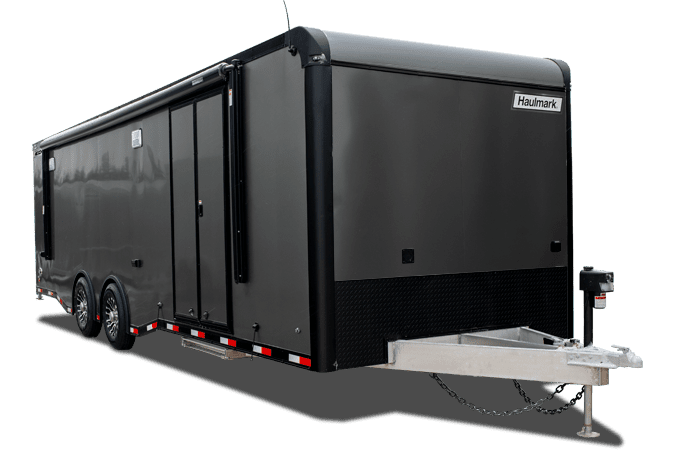

- •Flat Front/Flat Roof Truck-Body Design
- •Roof and Sidewall Structure
- •-16" OC C-Channel Floor Crossmembers
- •-16" OC Tube Sidewall Posts
- •-16" OC Tube Roof Structure
- •54" A-Frame with Center Tube
- •Skid Pads Rear Corners
- •No-Show Beavertail
- •25/16" Adjustable Wallace Forge 20K Cast Coupler (Made in the USA)
- •Square Tube 8K Drop Leg Side Wide Jack with Footplate (Bolt-On/Replaceable)
- •.080 ACP Panels (Select Colors)
- •Cast Aluminum Corners (Front & Rear)
- •Stainless Steel Cap and Front Corners
- •Polished Aluminum Rear Corners & Header
- •1-Piece Aluminum Roof
- •ArmorTechTM on A-Frame and Rear End Rail
- •24" ATP Stoneguard
- •Spring-Assisted Rear Ramp Door with 96"W Opening
- •16" PlexCoreTM Ramp Extension
- •Heavy-Duty Recessed Paddle Latches on Rear Ramp Door
- Cross Members
- -16" OC C-Channel Floor Crossmembers
- Decking
- 3/4" PlexCoreTM High Performance Decking
- Sides
- 3/8" PlexCoreTM High Performance Sidewall Liner
- Coupler
- 2-5/16” Coupler
- Electric Plug
- 7-way 12V Connection
- Finish
- ArmorTechTM on A-Frame and Rear End Rail
- Jack
- Square Tube 8K Drop Leg Side Wide Jack with Footplate (Bolt-On/Replaceable)
- Lights
- 12v Smoke Lens LED Exterior Lighting
- Paint
- .080 ACP Panels (Select Colors)
- Ramps
- Spring-Assisted Rear Ramp Door with 96"W Opening
•
36" x 78" Side Entry Door with Recessed Step
•Torflex Spread Axle Design with Drop Skirting•Goodyear Radial Tires with Black Viper Aluminum Wheels•12v Smoke Lens LED Exterior Lighting•12v Smoke Lens Stop/Tail/Turn/Back-Up Lights (3 pr.)•12v LED Dome Lights with Wall Switch (4)•14" x 14" Non-Powered Roof Vent (2)•5,000 lbs. Square D-Rings with Welded Plate (4)•3/4" PlexCoreTM High Performance Decking•3/8" PlexCoreTM High Performance Sidewall Liner•Economy Ceiling Liner•3-Year Limited WarrantyOptions coming soon — contact us for details.
Top Rail-16" OC Tube Roof Structure WheelsGoodyear Radial Tires with Black Viper Aluminum Wheels
