Grizzly Enclosed Cargo HDV | Freeway Trailer Sales

← Enclosed Cargo

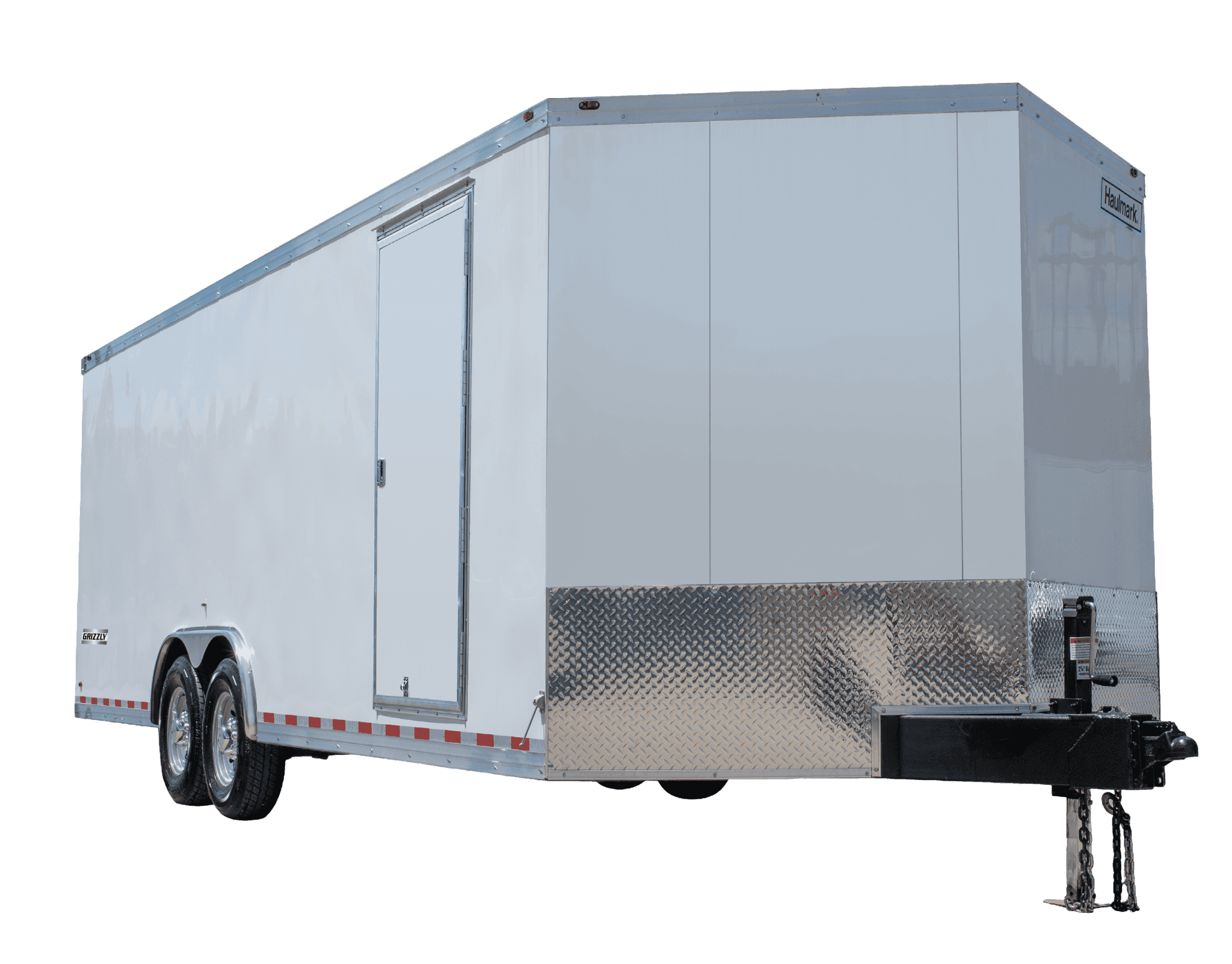

Grizzly Enclosed Cargo HDV

HaulmarkEnclosed Cargo

Grizzly Enclosed Cargo HDV

Models & Sizes

GRVHD716T3
7' 0" x 19' 0"
Curb Wt
2785 lb
GVWR
9990 lb
GRVHD712T2
7' 0" x 15' 0"
Curb Wt
2145 lb
GVWR
7000 lb
GRVHD714T2
7' 0" x 17' 0"
Curb Wt
2265 lb
GVWR
7000 lb
GRVHD716T2
7' 0" x 19' 0"
Curb Wt
2385 lb
GVWR
7000 lb
GRVHD720T3
7' 0" x 23' 0"
Curb Wt
3025 lb
GVWR
9990 lb
GRVHD8516T2
8' 4" x 19' 0"
Curb Wt
2895 lb
GVWR
7000 lb
GRVHD8516T3
8' 4" x 19' 0"
Curb Wt
3220 lb
GVWR
9990 lb
GRVHD8520T2
8' 4" x 23' 0"
Curb Wt
3340 lb
GVWR
7000 lb
GRVHD8520T3
8' 4" x 23' 0"
Curb Wt
3665 lb
GVWR
9990 lb
GRVHD8524T3
8' 4" x 27' 0"
Curb Wt
4105 lb
GVWR
9990 lb

Standard Features

Haulmark DuraCageTM Construction
Tube Main Rails
16" OC C-Channel Crossmembers (Full Height of Main Rail)
16" OC Tube Vertical Posts
16" OC Tube Roof Bows
Dust-Proof Sidewalls
Entire Chassis Undercoated
ArmorTechTM on A-Frame and Interior Wheel Boxes
Adjustable Height 25/16" Wallace Forge Cast Coupler (Made in the USA)
Square Tube 8K Dropleg Sidewide Jack with Footplate (Bolt-On/Replaceable)
Dexter Torsion Axles with E-Z Lube Hubs
Radial Tires with Silver Mod Wheels
4-Wheel Electric Brakes with Breakaway Battery
3' V-Nose and Flat Roof with Cast Aluminum Rear Corners
1-Piece Seamless Aluminum Roof
Smooth Aluminum Fenderettes
24" ATP Stoneguard
.080 ACP Panels (Select Colors)
3.75" Extruded Aluminum Top & Botton Trim
Double Rear Doors (Rear Ramp Door Optional Upgrade)

Specifications

Cross Members: 16" OC C-Channel Crossmembers (Full Height of Main Rail)
Decking: 3/4" PlexCoreTM Decking
Sides: 3/8" PlexCoreTM Sidewall Liner
Coupler: 2-5/16” Coupler
Electric Plug: 7-way 12V Connection
Fenders: Smooth Aluminum Fenderettes
Finish: Entire Chassis Undercoated
Jack: Square Tube 8K Dropleg Sidewide Jack with Footplate (Bolt-On/Replaceable)
Lights: LED Slimline Clear Lens Tail Lights
Paint: .080 ACP Panels (Select Colors)

Available Colors

Primary Colors

Black
