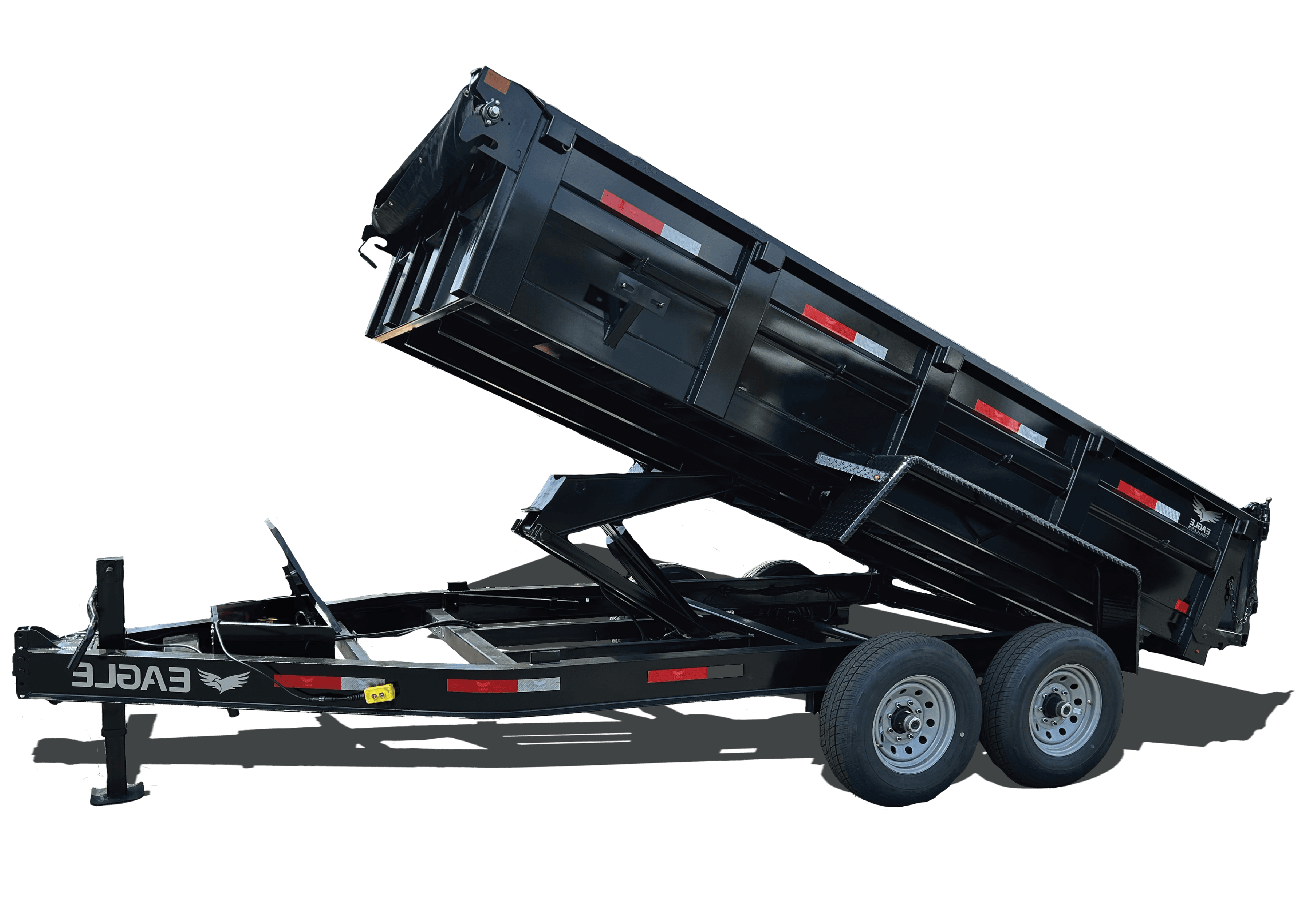

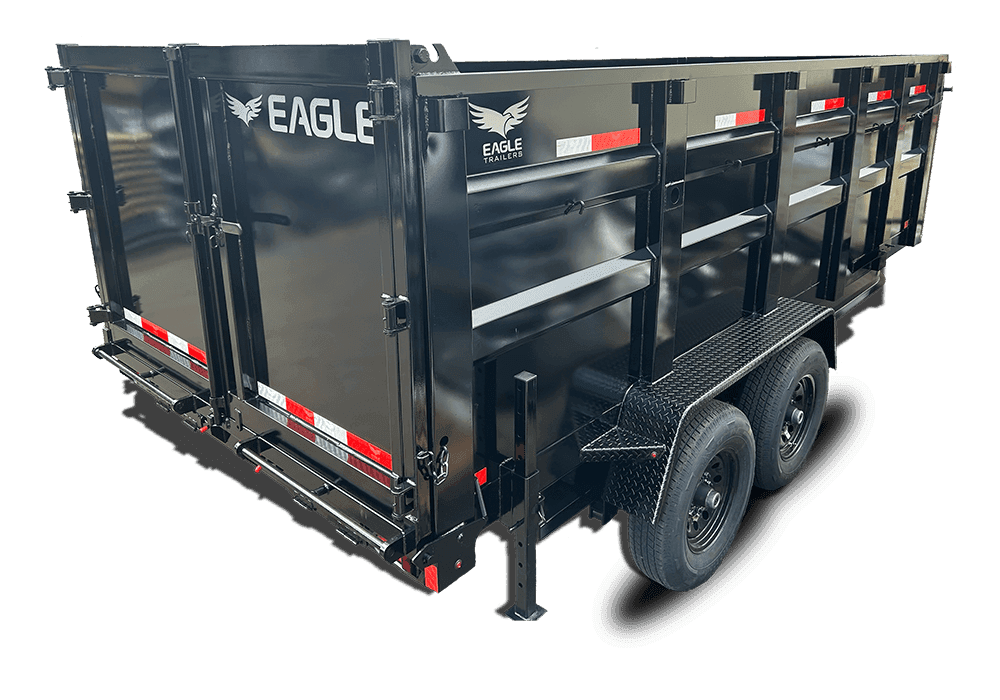

16K Low Profile Dump

Eagle TrailersDump

Models & Sizes

RDL24714TA6
7 ' x 14 ' Tandem Axle Low Pro Dump, 24 " Sides
Curb Wt
4050 lb
GVWR
16000 lb
RDL36714TA6
7 ' x 14 ' Tandem Axle Low Pro Dump , 36" Sides
Curb Wt
4275 lb
GVWR
16000 lb
RDL48714TA6
7 ' x 14 ' Tandem Axle Low Pro Dump , 48 " Sides
Curb Wt
4370 lb
GVWR
16000 lb
RDL24716TA6
7 ' x 16 ' Tandem Axle Low Pro Dump , 24 " Sides
Curb Wt
4150 lb
GVWR
16000 lb
RDL36716TA6
7 ' x 16 ' Tandem Axle Low Pro Dump , 36 " Sides
Curb Wt
4410 lb
GVWR
16000 lb
RDL48716TA6
7 ' x 16 ' Tandem Axle Low Pro Dump , 48 " Sides
Curb Wt
4550 lb
GVWR
16000 lb

Standard Features

8 " iBeam Tongue and Frame Construction
Trickle Charge Line From Tow Vehicle
16 " Wheels & Tires ( Radial )
Sealed Beam LED Lights
PPG Primer and Paint
4 D - Rings
Heavy Duty Diamond Plate Fenders
10 Gauge 24 " or 48 " Sidewalls
3 " x 3/16 " Channel Cross Members
4 " Full Length Bed Runners and Ramp Pockets
Metal Cover Mesh Tarp Roll System
110 Volt Charger
Drop Down Rear Stabilizer Jacks
Front Frame Tool Step
Expanded Metal Tool Tray Under Dump Box
Electric Over Hydraulic Pump and Reservoir with Gravity Override
Tarp Bar
Dual Action Spreader Gate

Popular Options

Spare Tire
24 " Expanded Metal Mesh Side Extensions
Solar Charger ( 1.5 Amp )
Gooseneck Option

Specifications

GAWR: 16000
Coupler Height: 13.5" to 21.5"
Deck Height: 25"
Main Frame: 8" iBeam Frame 3" Channel Cross Members and Reinforced Frame for Direct Push 5" Bore Hydraulic Cylinder
Axle: 7,000# Axle with Brakes
Floor: 8 Gauge (-) Steel Floor
Coupler: 2 5/16 " Coupler
Dump Box Frame: 2 " x 5 " Rectangle Tube (0.120") 1 1/2" x 1" 3" Channel 16" on Center Three-Way Spreader Gate 10 Gauge (-) Sides 5" Channel Full Length Runners 6" Heavy Duty Uprights (Note: with Ramps 3" Channel)
Electric Plug: 7-Way RV Molded Water Tight Plug
Fenders

Available Colors

Primary Colors

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost)

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401
